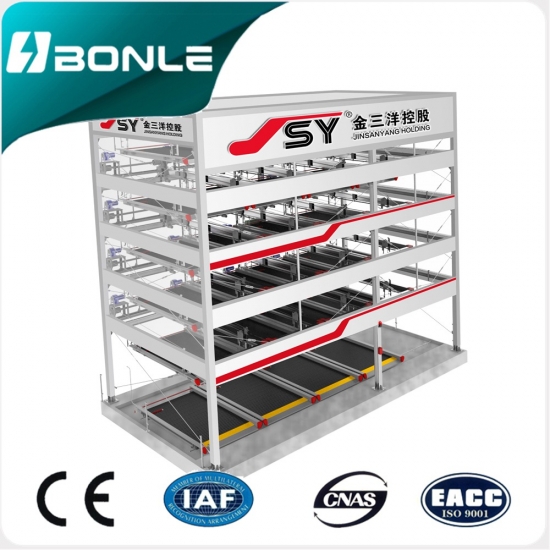

Multilayer Lift Sliding Mechanical Parking System Parking Lift BONLE
Multilayer Lift Sliding Mechanical Parking System Parking Lift

  • Product Origin:

    China
  • Brand:

    JSY
  • Item No.:

    PSH 3-JSY
  • Shipping Port:

    FUZHOU
  • Color:

    Customerized
  • Lead Time:

    3M
  • Payment:

    fob or cnf
GET PROJECT SOLUTION&Quote NOW
  • DESCRIPTION
  • PARAMETERS

Product Description

Product Application

Parking is a universal problem as most cities are limited with space;lifting stereoscopic garage is the future trend.Jinsanyang(JSY) parking system provides and focuses on the research and the operation of sky parking.It solves the parking difficult problem.

Information
Multilayer Lift Sliding Mechanical Parking System
Product model
4-Storey
5-Storey
6-Storey
Equipment Size
L (MM)
6000
6300
6000
5700
5400
W (MM)
2500
2600
2500
2450
2400
H (MM)
2250
1700
1700
1600
1600
Dimensions of vehicle suitable for parking
Vehicle Type
SUV
PC/over size
PC/L
PC/Me
PC/C
L (MM)
5000
5300
5000
4700
4400
W (MM)
1850
1900
1850
1800
1750
H (MM)
2050
1550
1550
1450
1450
Weight (KG)
1850
2350
1700
1500
1300
Parking Capacity
Four Layer 4xn-3
Five Layer 5xn-4
Six Layer 6xn-5
Drive
Motor Power
2.2KW~2.2KW
Lifting Speed (m/min)
5.5 m/min
Sliding Speed (m/min)
8 m/min
Features
Show
Advantage

Advantage


1.Steel Selection: Large-scale steel ,solid steel design


2.Installarion Technology: High strengh bolt , long-lasting life


3.Restrictor:Resonable design with external contracting holding for tires,


preventing slidding


4.Motor Position: Hiding motor , convenient usage
