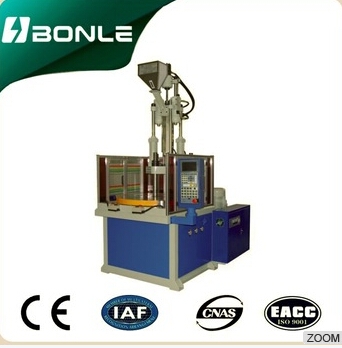

Hand operated injection molding machine BONLE
Hand operated injection molding machine

supply,design and bulid production line

  • Product Origin:

    China
  • Brand:

    BONLE
  • Item No.:

    V35R2
  • Shipping Port:

    FUZHOU
  • Lead Time:

    35-40DAYS
  • Payment:

    fob or cnf
GET PROJECT SOLUTION&Quote NOW
  • DESCRIPTION
  • PARAMETERS

We supply injection molding machine and auxiliary equipment,

and can help customers design and bulid production line in your

factory,along with the necessary working process training.

1.Stands closes-fires from the prone position four columnsmol series to do in the identical horizontal plane 180° return lathe.

but the operator does in the fixed operation surface takes to put inlays,the work convenience also lives the efficiency to be high.

2.The surface localization,by is fixed lives,after may guarantee turns on lathe stops,can have the high accuracy the localization about,

takes shape the mold accurately to gather the mold.

3.The aoca from inserts takes out and so onfrom sets,helps all from.

4.The 2 stations,have the special demand to be possible 3 to stand,4to stand in addition or more stations.to a more conv enient operation,

and form does delimits,increase energy.




MODEL

V35R2

Injection unit

Screw diameter (mm)

Φ22

Φ25

Φ28

Theoretical injection volume  (cm2)

53

68.8

86

Injection weight(PS)          g(oz)

49(1.7)

63.8(2.2)

80(2.8)

Max.Injection pressure Mpa(kgf/c2)

248(2530)

192(1960)

153(1563)

Injection rate              (cm2/s)

44

57

71

Injection speed (mm/s)

116

Screw speed rotation (r.p.m)

0-300

Nozzle out from platens (mm)

45

Clamping unit

Clamping force KN(tf)

343(35)

Clamping stroke (mm)

200

Min.Mold thickness (mm)

150(210)

Max.Opening (mm)

350(410)

(LxW)Max.mould size (mm)

300*300

Rotary table size (mm)

Φ810

Ejector distance (mm)

75

Ejector force KN(tf)

26.5(2.7)

Others

System pressure       Mpa(kgf/cm2)

13.7(140)

Oil tank capacity L

200

Electric power KW(HP)

7.5(10)

Heatern power KW

3.6

Machine dimensions LxW (m)

1.9*1.5

Machine dimensions H (m)

2.9

Machine weight (tf)

2.2
