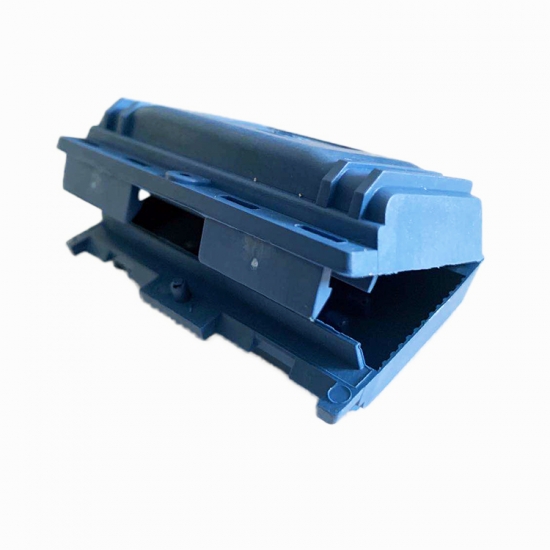

BONLE gel H-frame closure provides a fast and simple method for insulating and environmentally sealing low-voltage cable taps and splices made with H-frame compression connectors.

Simply place the connection on the closure and press the closure together. It's that easy-no tapes, mastics, tools, or mixing are required. The closure can be easily installed with one hand, even while wearing high voltage gloves.

The closure utilizes BONLE's innovative sealing gel to protect the connection from moisture ingress, corrosion, and pollution. BONLE's pre-cured polymer gels are blended together and crosslinked to give high elasticity, high cohesiveness, and temperature stability. They have been in use in other applications for over 10 years.

BONLE's gels are ideal for sealing electrical connections from moisture, dirt and other contaminants. There is no need to apply heat or use sealants that would make re-entry difficult or impossible. When compressed, gels will coat and adhere to surfaces; they can be easily removed by pulling or peeling them off.

Strip main and tap cable insulation using the connector as a guide.

Do not allow more than a 1/4- (6mm) of exposed conductor from edges of connector as shown.

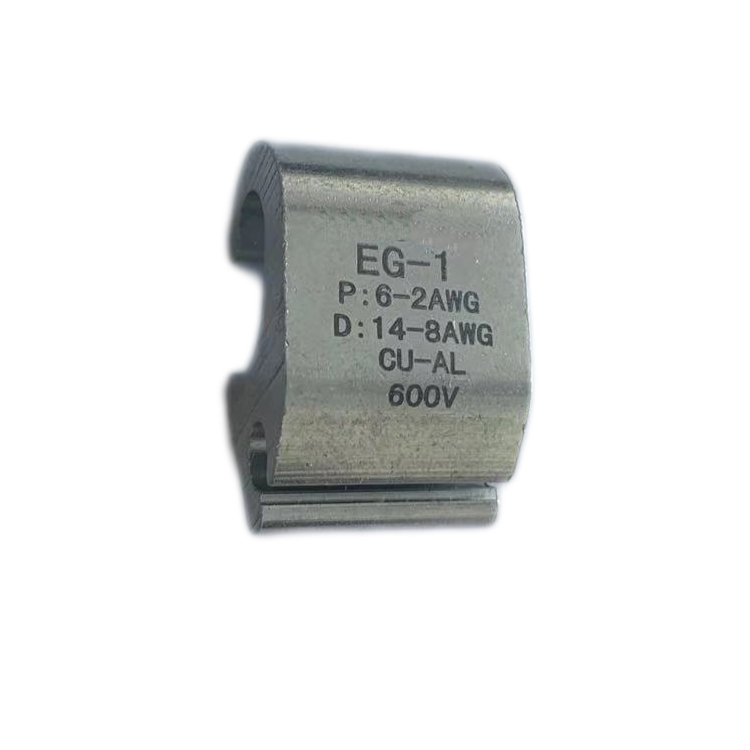

Install connector per manufacturer's instructions. Clean cables for a distance of 4" (6mm) from conductors.

2.  Place H-frame in closure

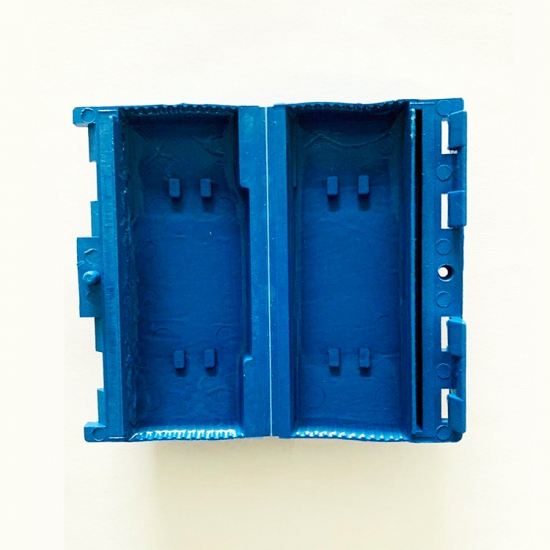

Open hinged closure to expose gel being careful not to contaminate gel surfaces.

Place H-frame connector in center of gel closure as shown.

3. Compress closure

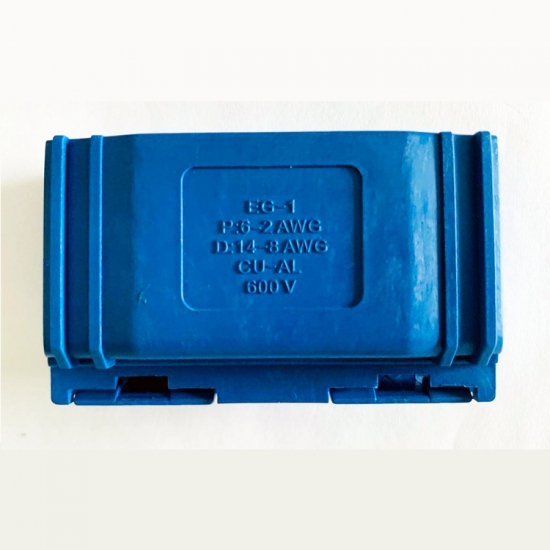

Compress gel closure over H-frame connector as shown making sure that both locking snaps are securely engaged.

Inspect completed splice. Properly installed closure will have both snaps securely locked. Gel will be visible at both ends of closure.
