Disc Insulator 52-9

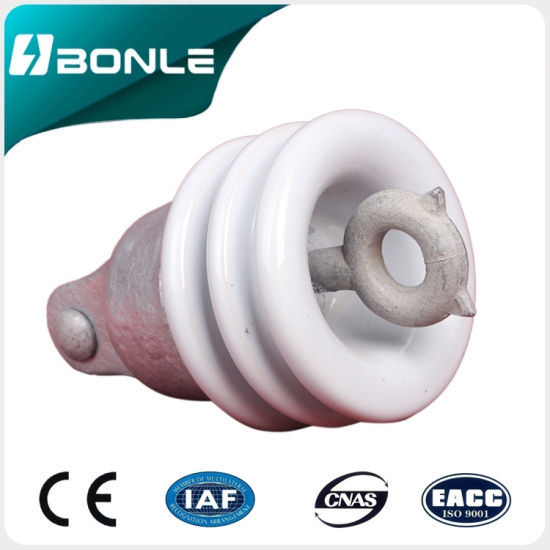

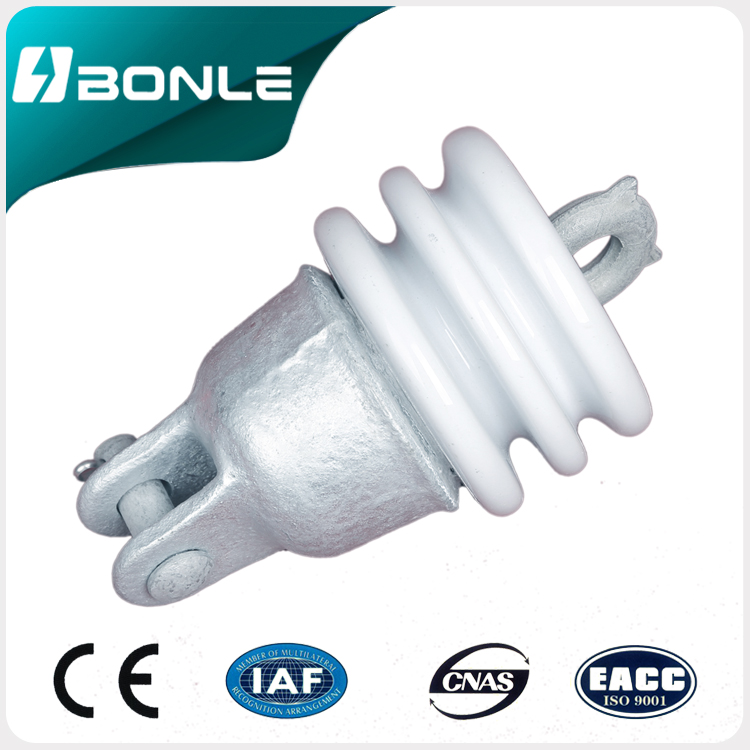

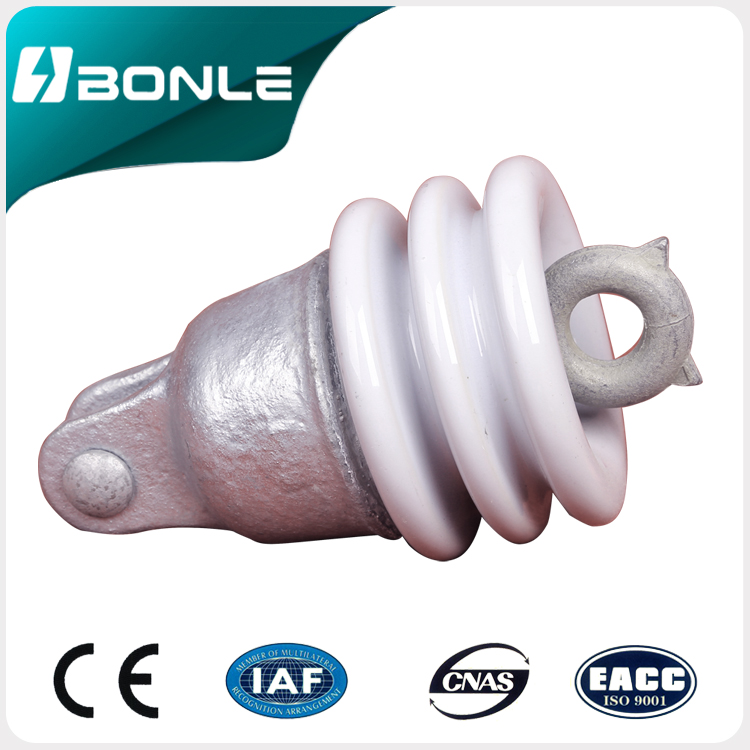

Porcelain Suspension Disc Insulator 52-9

  • High quality standard(IEC,BS,ANSI,AS,DIN,GB)
  • Competitive price
  • ISO9001:2008/ISO14001:2004/GB/T 28001-2011/

  • Product Origin:

    china
  • Brand:

    BONLE
  • Item No.:

    52-9
  • Shipping Port:

    FUZHOU PORT
  • Color:

    Brown or grey
  • Lead Time:

    30days
  • Payment:

    FOB or CNF
Get Free Drawing&Quote Now
  • DESCRIPTION
  • PARAMETERS

 Porcelain suspension insulator disc insulator 52-9

  ANSI Class  52-9
  Creepage Distance, mm   171
  Combined M & E Strength, kn    44
  Impact Strength, n-m   5
  Routine Proof Test Load, kn   22
  Time Load Test Value, kn   27
  Low Frequency Puncture Voltage,kv    80
  Test Voltage to Ground, kv   7.5
  Maximum RIV at 1000KHZ, μv   50
  Net Weight, Each Approx., kg    2.5

 52-9 insulatorinsulator 52-9

disc insulator 52-9 porcelain

Buy Porcelain Suspension Insulators online from China. We are highly efficient for disc insulator at best price with IEC certification. Order Now.
