1.Led for battery charge
2.A manual retraction
Product Origin:
ChinaBrand:
BONLEItem No.:
EZ 300,EZ 400Shipping Port:
FUZHOULead Time:
15DAYSPayment:

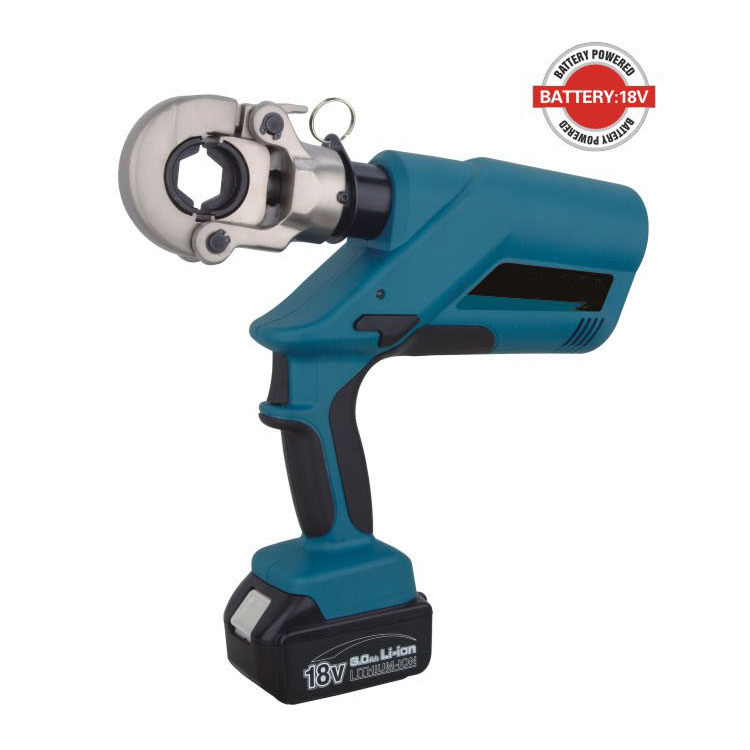

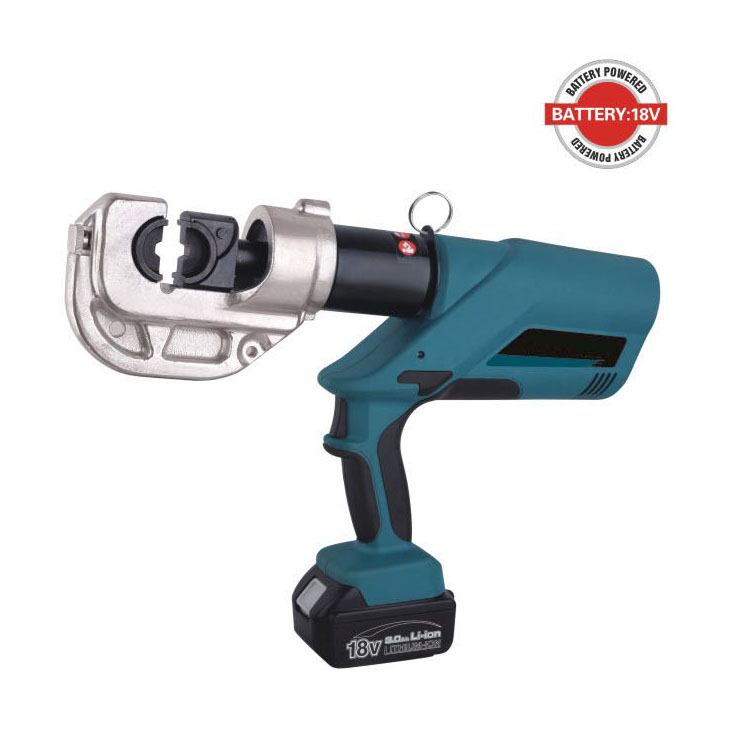

fob or cnfMini battery crimping tool EZ 240
TECHNICAL DATA:
| Type | EZ 300 | EZ 400 |
| Crimping force | 60KN | 120KN |
| Stroke | 17mm | 42mm |
| Crimp/charge | 320times (Cu 150mm) | 120times (Cu 150mm) |
| Crimping cycle | 3s-6s(depend on the size of the cable) | 6s-18s(depend on the size of the cable) |
| Voltage/capacity | 18V/1.5Ah | 18V/3Ah |
| N.weight(with battery) | 4.6kgs | 6.4kgs |
| Charging time | 1.5h | 1.5h |
| Package | Plastic box | Plastic box |
ACCESSORIES:
| Crimping dies | 16，25，35，50，70，95，120，150，185，240,300,400mm2 |
| Battery | 2pcs |
| Charger | 1pc |
| sealing ring of cylind | 1set |
| sealing ring of safety valve | 1set |
Welcome to visit our factory and start our business here.
For more about us,please feel free to contact us directly:
Tel: +86-0591-88000110 or +86-0591-88000140
Fax: +86-0591-88000112

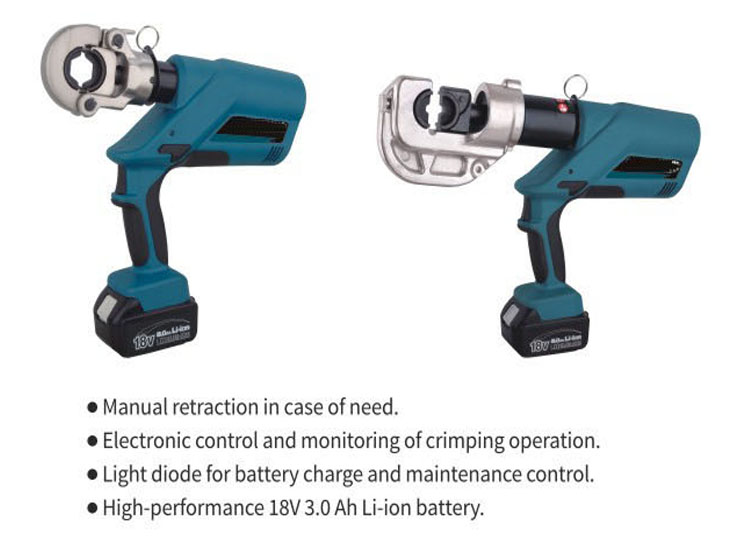

1.Led for battery charge 2.A manual retraction
1,one head for crimping,cutting and punching 2,universal head rotates 350°，flip top style 3,two stage hydraulics 4,Automatic pressure release when crimp is complete 5,Manual retract after working
1,one head for crimping,cutting and punching 2,universal head rotates 350°，flip top style 3,two stage hydraulics 4,Automatic pressure release when crimp is complete 5,Manual retract after working
1,one head for crimping,cutting and punching 2,universal head rotates 350°，flip top style 3,two stage hydraulics 4,Automatic pressure release when crimp is complete 5,Manual retract after working
1,one head for crimping,cutting and punching 2,universal head rotates 350°，flip top style 3,two stage hydraulics 4,Automatic pressure release when crimp is complete 5,Manual retract after working
1,one head for crimping,cutting and punching 2,universal head rotates 350°，flip top style 3,two stage hydraulics 4,Automatic pressure release when crimp is complete 5,Manual retract after working
