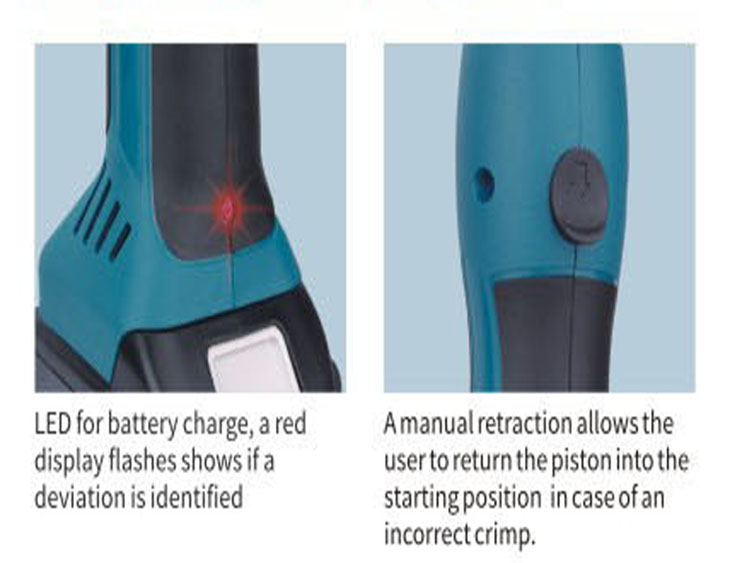

1.Led for battery charge
2.A manual retraction
Product Origin:
ChinaBrand:
BONLEItem No.:
EZ240,EZ300BShipping Port:
FUZHOULead Time:
15DAYSPayment:

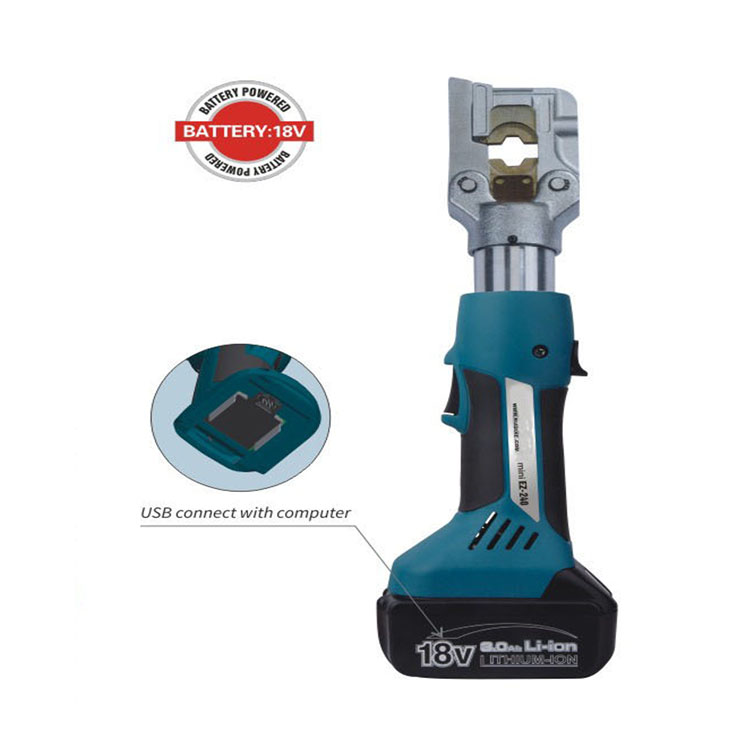

fob or cnfMini battery crimping tool EZ 240
TECHNICAL DATA:
| Type | EZ 240 | EZ 300 B |
| Crimping force | 50KN | 60KN |
| Stroke | 12mm | 12mm |
| Crimp/charge | 170times (Cu 150mm) | 300times (Cu 150mm) |
| Crimping cycle | 3s-6s(depend on the size of the cable) | 3s-6s(depend on the size of the cable) |
| Voltage/capacity | 18V/1.5Ah | 18V/1.5Ah |
| N.weight(with battery) | 2.6kgs | 2.95kgs |
| Charging time | 40mins | 40mins |
| Package | Plastic box | Plastic box |
ACCESSORIES:
Crimping dies
16，25，35，50，70，95，120，150，185，240,300mm2
Battery
2pcs
Charger
1pc
sealing ring of cylind
1set
sealing ring of safety valve
1set
Welcome to visit our factory and start our business here.
For more about us,please feel free to contact us directly:
Tel: +86-0591-88000110 or +86-0591-88000140
Fax: +86-0591-88000112
Previous:
Battery crimping tool EZ 300 EZ 400
1.Led for battery charge 2.A manual retraction

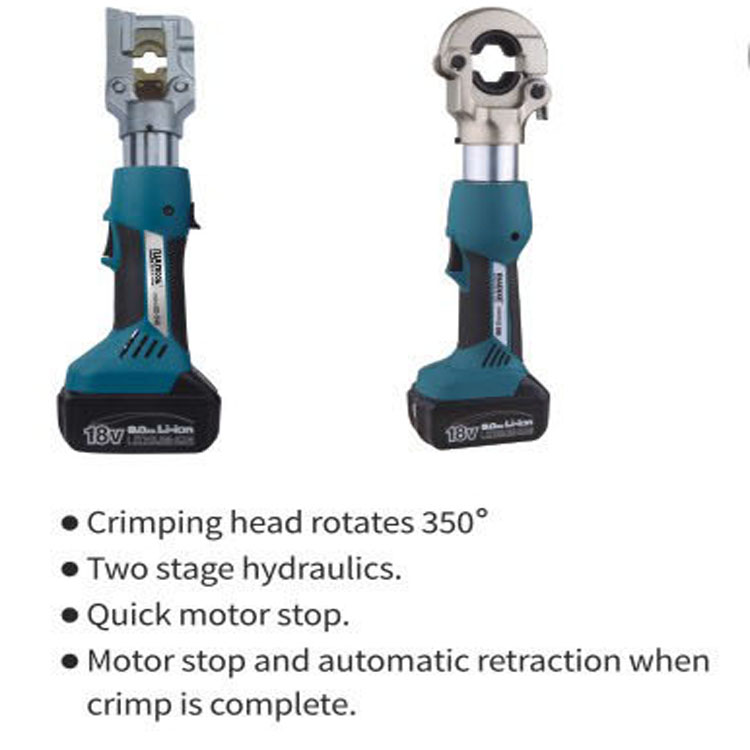

1,one head for crimping,cutting and punching 2,universal head rotates 350°，flip top style 3,two stage hydraulics 4,Automatic pressure release when crimp is complete 5,Manual retract after working
1,one head for crimping,cutting and punching 2,universal head rotates 350°，flip top style 3,two stage hydraulics 4,Automatic pressure release when crimp is complete 5,Manual retract after working
1,one head for crimping,cutting and punching 2,universal head rotates 350°，flip top style 3,two stage hydraulics 4,Automatic pressure release when crimp is complete 5,Manual retract after working
1,one head for crimping,cutting and punching 2,universal head rotates 350°，flip top style 3,two stage hydraulics 4,Automatic pressure release when crimp is complete 5,Manual retract after working
1,one head for crimping,cutting and punching 2,universal head rotates 350°，flip top style 3,two stage hydraulics 4,Automatic pressure release when crimp is complete 5,Manual retract after working
