Product Origin:
chinaBrand:
BONLEItem No.:
P-11-YShipping Port:
FUZHOU PORTColor:
Brown or greyLead Time:
30daysPayment:

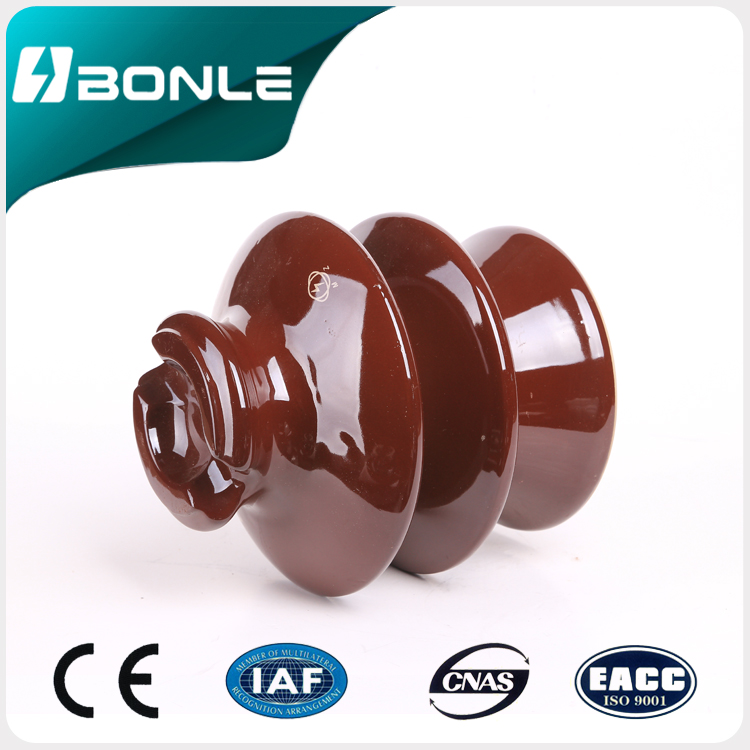

fob or cnfElectrical ceramic pin type insulator P-11-Y pin type insulator
Find Pin Insulator manufacturers from China. Import quality Pin Insulator supplied by experienced manufacturers at bonle.net.
Advantage:
1, Strong aging resistance6, Superior properties of high and low tempreture resistance, mechnical capability, electrical function.
Our overhead transmission line and substation project,including 11kv Pin Insulator,Power Fitting,Cutout Fuse,Lightning Arrester and Isolate Switch. They have been created for outdoor use.
Standard particulars
CLASS ANSI |
P-11-Y |
|||
Main Dimension(mm)
|
D |
140 |
||
H |
133 |
|||
Creepage Distance/mm |
240
|
|||
Power Frequency Puncture Voltage Average(KV) |
135
|
|||
Average flashover voltage
|
Power-frequency
|
Dry (KV) |
75 |
|
Wet(KV) |
45 |
|||
50%Impulse
|
Positive (KV) |
100
|
||
Negative(KV) |
110
|
|||
Radio-influence voltage |
Test voltage to ground (KV) |
15 |
||
Maximum RIV at 1000Khz(kv) |
8000 |
|||
Nominal Voltage/KV |
11 |
|||
| Impulse/KV | - |
|||
Cantilever Failing Load |
1080 |
|||
Weight(kg) |
1.8 |
|||
| Product Advantages |
| Production Process |
| QC Flow |
| Company Information |
|
About Us
BONLE Group professionally in power electronics manufacturing and export for many years. Till now sized with 7 factories for different product series. And build a long-term and close collaborative relationship with more than 30 Chinese domestic suppliers, which assures supplying completely for the substation and transmission lines project. Below we have 3 main business channels for different cooperations 1. General order business. 2. International tenders. 3. Substation &Transmission line construction projects. |
|
|
| Qualification Certificate |
| Exhibition |
| BONLE has attend many professional electrical and power exhibitions at different countries for business development, especially our products and services have received lot of good feedbacks from customers. |
| FAQ |
1.Are you factory? Where is the location?
Yes: Office and Factory Address is like below:
91#Taiyu Rd, Fuwan Pian, Jinshan Industrial zone, Fuzhou, PRC 350008
2.What is your main product?
We are advantage in power electrical product manufacturing and exporting,have different product series in high voltage series like insulator, cutout fuse, lightning arrester etc, and some series in low voltage series like switch and socket.types of electrical insulators. We can accept OEM.
3.When was your company established? How many production lines do you have at present? How many employees?
Our first plant founded in 1991, till now have sized with 7 factories for different product series. And we have 1500 employees (totally in all factories).
4.Where is your major customer?
Our major customers are from Mid-east, South-east Asia and South America, Africa. 5.Does the product you supply have quality guarantee and certificate? Yes,the product pass standard and required testing,
Previous:
High voltage 22kv pin P-22-Y insulatorNext:
Ceramic pin insulator N95-4 for high voltage transmission line
High quality standard(IEC,BS,ANSI,AS,DIN,GB) Competitive price ISO9001:2008/ISO14001:2004/GB/T 28001-2011/
High quality standard(IEC,BS,ANSI,AS,DIN,GB) Competitive price ISO9001:2008/ISO14001:2004/GB/T 28001-2011/
High quality standard(IEC,BS,ANSI,AS,DIN,GB) Competitive price ISO9001:2008/ISO14001:2004/GB/T 28001-2011/
High quality standard(IEC,BS,ANSI,AS,DIN,GB) Competitive price ISO9001:2008/ISO14001:2004/GB/T 28001-2011/
High quality standard(IEC,BS,ANSI,AS,DIN,GB) Competitive price ISO9001:2008/ISO14001:2004/GB/T 28001-2011/
High quality standard(IEC,BS,ANSI,AS,DIN,GB) Competitive price ISO9001:2008/ISO14001:2004/GB/T 28001-2011/

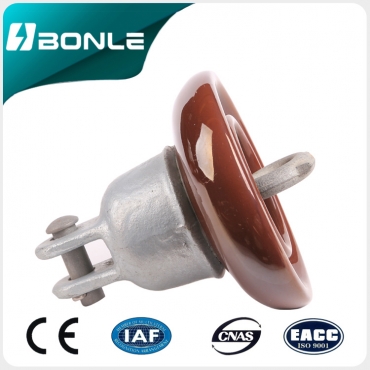

High voltage Anti-fog suspension disc cap XHP 120 insulator
