Different head fitting
High voltage overhead composite insulator and fittings

1).Silicon Rubber for sheds/housing

2).Glass-fiber reinforced epoxy resin rod(ECR type)for core

3).Hop dip galvanized cast steel for metal fittings

4).IEC standard.

5).ISO9001 and ISO14001 manufacturer.

  • Product Origin:

    china
  • Brand:

    BONLE
  • Shipping Port:

    FUZHOU PORT
  • Color:

    red or grey
  • Lead Time:

    30days
  • Payment:

    FOB OR CNF
Get Free Drawing&Quote Now
  • DESCRIPTION
  • PARAMETERS

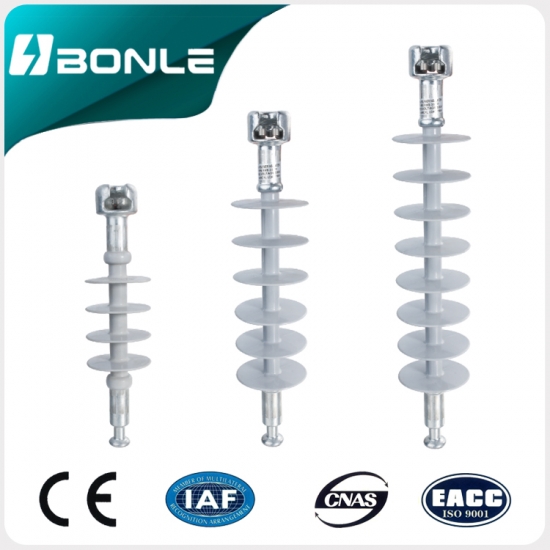

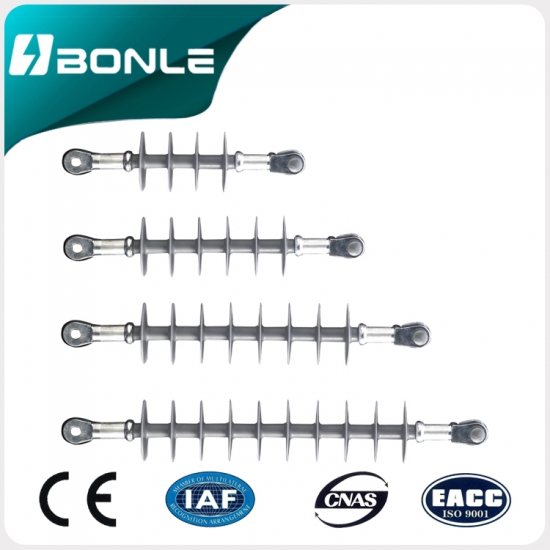

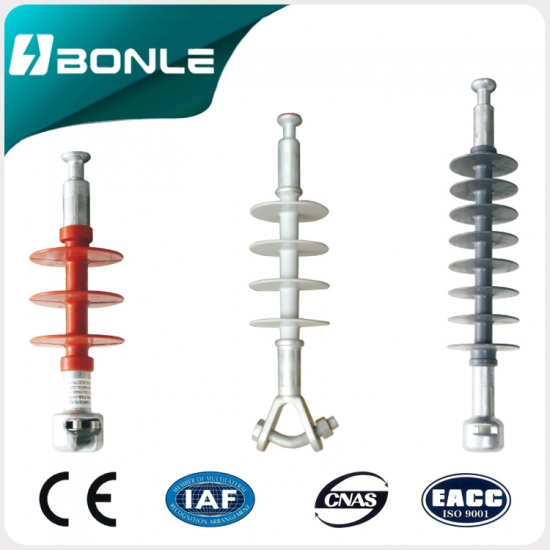

High voltage overhead composite insulator and fittings


Feature:



1.The insulators are made of glassfiber epoxy core rod,silicone rubber shed and metal fitting.



2.The silicone rubber shed adopt the whole packing pressure technique.



3.Small volume,light weight,corrosion prevention and reliable structure.



4.Sheath thickness is more than 5mm and in accordance with IEC international standard.

  Product Description

Product Name

 Lowest Price Customizable Silicon Rubber Insulators

Product No.

 FXBW

Type

 suspension

Material

 composite polymer & silicon

Color

 red or grey

Weight(kgs)

 16

Application

 high voltage

Standard

 IEC

Packaging Details

 Carton

Delivery Detail

 25 DAYs

Payment

 L.C,T/T, WU, MG, PayPal

Carton Size(cm)

 41x40x17.5

 overhead composite insulator and fittings
 overhead composite insulator and fittings
