composite pin insulator FPQ
High voltage silicone pin insulator FPQ

1).Silicon Rubber for sheds/housing

2).Glass-fiber reinforced epoxy resin rod(ECR type)for core

3).Hop dip galvanized cast steel for metal fittings

4).IEC standard.

5).ISO9001 and ISO14001 manufacturer.

  • Product Origin:

    china
  • Brand:

    BONLE
  • Item No.:

    FPQ
  • Shipping Port:

    FUZHOU PORT
  • Color:

    red or grey
  • Lead Time:

    30days
  • Payment:

    FOB OR CNF
Get Free Drawing&Quote Now
  • DESCRIPTION
  • PARAMETERS

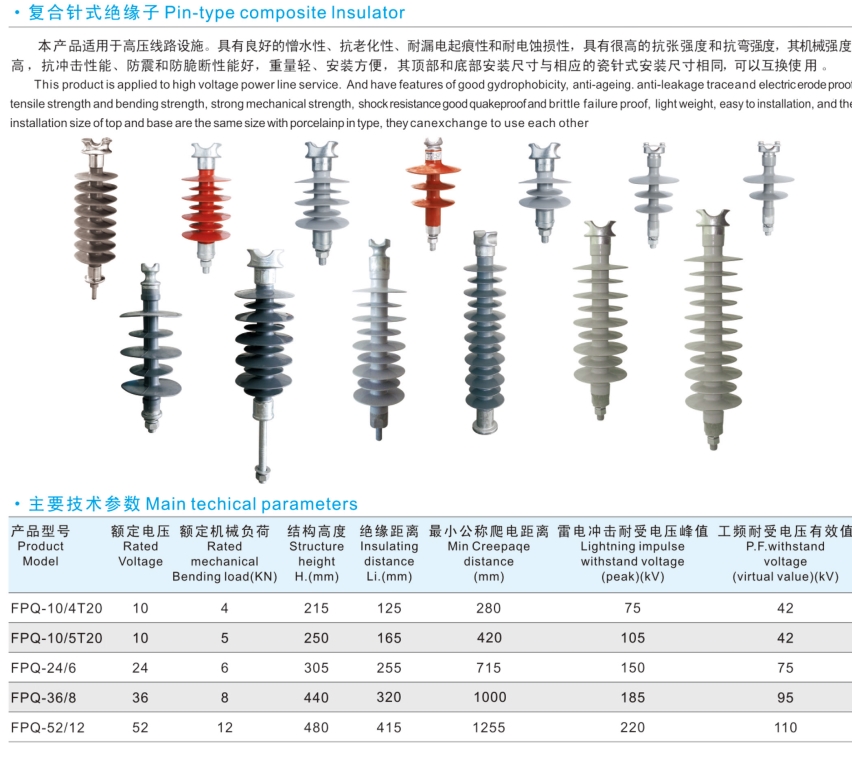

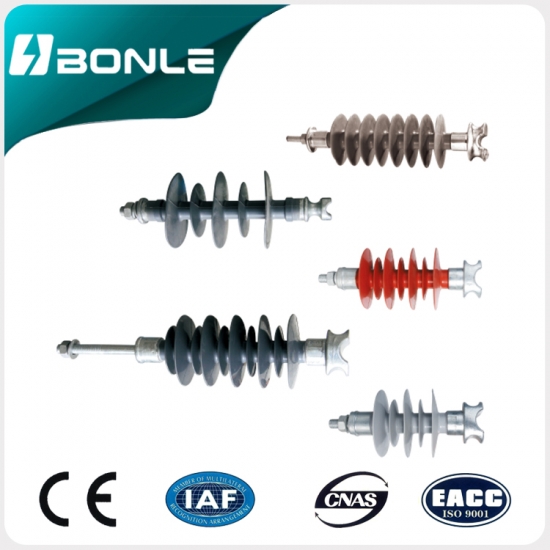

High voltage silicone pin insulator FPQ


Feature:



1.The insulators are made of glassfiber epoxy core rod,silicone rubber shed and metal fitting.



2.The silicone rubber shed adopt the whole packing pressure technique.



3.Small volume,light weight,corrosion prevention and reliable structure.



4.Sheath thickness is more than 5mm and in accordance with IEC international standard.



  Product Description

Product Name

 Export Quality Wholesale Customize Pin Type Porcelain Insulator

Product No.

 FXBW

Type

 suspension

Material

 composite polymer & silicon

Color

 red or grey

Weight(kgs)

 91

Application

 high voltage

Standard

 IEC

Packaging Details

 Carton

Delivery Detail

 25 DAYs

Payment

 L.C,T/T, WU, MG, PayPal

Carton Size(cm)

 301x44x33

High voltage silicone pin insulator FPQ
