Stay insulator 54-4
Medium voltage ceramic stay insulator 54-4

  • High quality standard(IEC,BS,ANSI,AS,DIN,GB)
  • Competitive price
  • ISO9001:2008/ISO14001:2004/GB/T 28001-2011/

  • Product Origin:

    china
  • Brand:

    BONLE
  • Item No.:

    54-4
  • Shipping Port:

    FUZHOU PORT
  • Color:

    Brown or grey
  • Lead Time:

    30days
  • Payment:

    fob or cnf
Get Free Drawing&Quote Now
  • DESCRIPTION
  • PARAMETERS

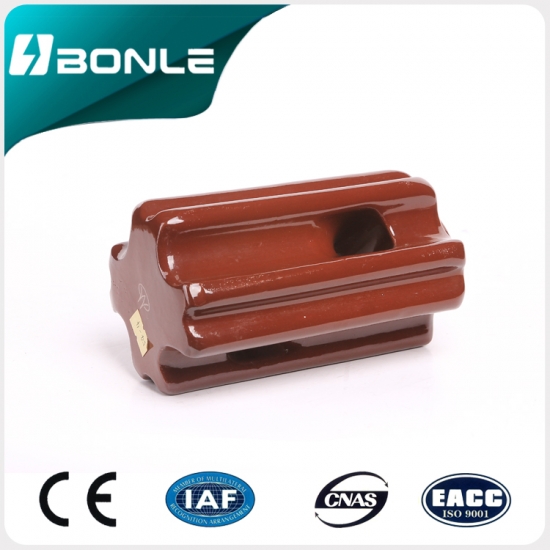

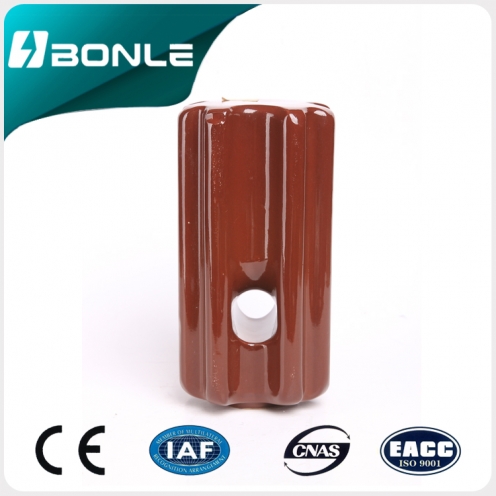

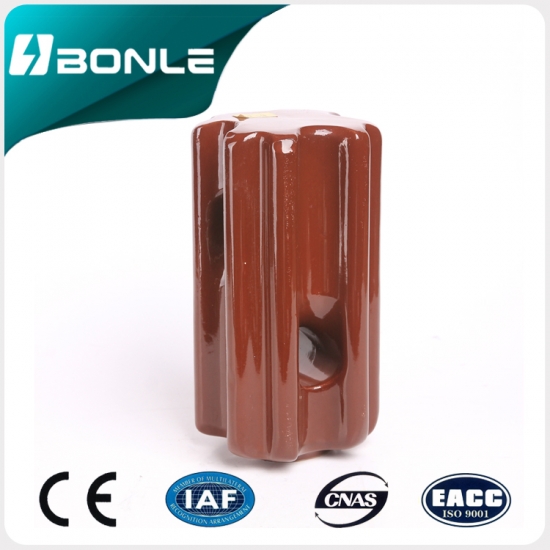

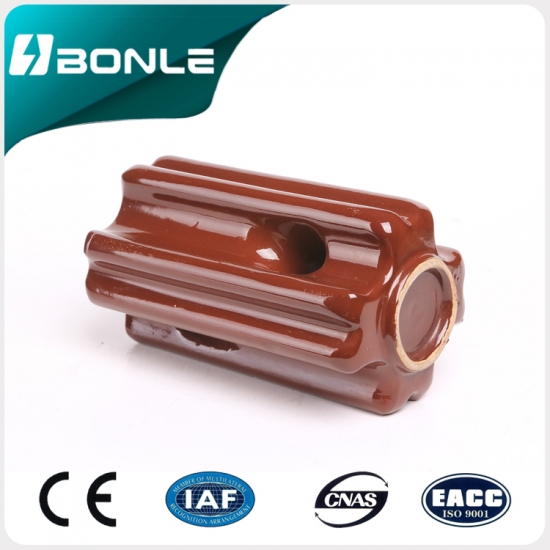

Medium voltage ceramic stay insulator 54-4

The porcelain insulator are used on substation & transmission Line. It helps to support and hand wire, insulation wires against tower.
Advantage:
1, Strong aging resistance
2, Long service life
3, Reasonable price
4, Porcelain uniform
5, Nice Appearance

6, Superior properties of high and low tempreture resistance, mechnical capability, electrical function.



Standard particulars



CLASS ANSI

54-4

Class

907

Leakage Distance(mm)

76/3"

Mechanical Failing Load(kg)

9072/20000

Power-Frequency Flashover Voltage(KV)

Dry

40

Wet

23

Weight(kg)

1.8

 Medium voltage ceramic stay insulator 54-4

Medium voltage ceramic stay insulator 54-4
