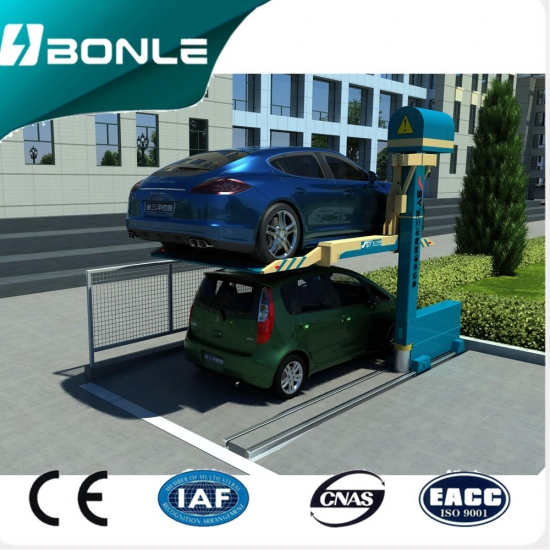

No Aviodance Mechanical Parking System Parking Lift BONLE
No Aviodance Mechanical Parking System Parking Lift

  • Product Origin:

    China
  • Brand:

    JSY
  • Item No.:

    No Aviodance Mechani
  • Shipping Port:

    FUZHOU
  • Color:

    Customerized
  • Lead Time:

    3M
  • Payment:

    fob or cnf
GET PROJECT SOLUTION&Quote NOW
  • DESCRIPTION
  • PARAMETERS

Product Description

Product Application

Parking is a universal problem as most cities are limited with space;lifting stereoscopic garage is the future trend.Jinsanyang(JSY) parking system provides and focuses on the research and the operation of sky parking.It solves the parking difficult problem.

Information
No Aviodance Mechanical Parking System
Area Dimensions
Vehicle Type
PC/L
PC/Me
PC/C
L (MM)
4600
4900
5200
W (MM)
2500
2600
2650
Install headroom clearance
3600
3600
3650
Lower lever floor parking clearance
1900
1900
1900
Installation Requires A Minimum Pavement Width
3.8m
Bearer Parameters
Upper lever parking space length(mm)
4400
4700
5000
Upper lever parking space width(mm)
1750
1800
1850
Upper lever parking space height(mm)
1550
1550
1650
Lower lever parking space length(mm)
4400
4700
5000
Lower lever parking space width(mm)
1850
1800
2050
Lower lever parking space height(mm)
1900
1550
1900
Performance Parameters
Maximum power
3KW
One-way vehicle access time
<90s
Noise
<65db
One access device power
<0.06kw/h
Ambient temperature/humidity
-30℃~+40℃、35~85%RH
Features
Show
Advantage

Advantage


1.Steel Selection: Large-scale steel ,solid steel design


2.Installarion Technology: High strengh bolt , long-lasting life


3.Restrictor:Resonable design with external contracting holding for tires,


preventing slidding


4.Motor Position: Hiding motor , convenient usage
