Vertical Lifting System Parking System Parking Lift BONLE
Vertical Lifting System Parking System Parking Lift

  • Product Origin:

    China
  • Brand:

    JSY
  • Item No.:

    PCSQ50D/K-JSY
  • Shipping Port:

    FUZHOU
  • Color:

    Customerized
  • Lead Time:

    3M
  • Payment:

    fob or cnf
GET PROJECT SOLUTION&Quote NOW
  • DESCRIPTION
  • PARAMETERS

Product Description

Product Application

Parking is a universal problem as most cities are limited with space;lifting stereoscopic garage is the future trend.Jinsanyang(JSY) parking system provides and focuses on the research and the operation of sky parking.It solves the parking difficult problem.

Information

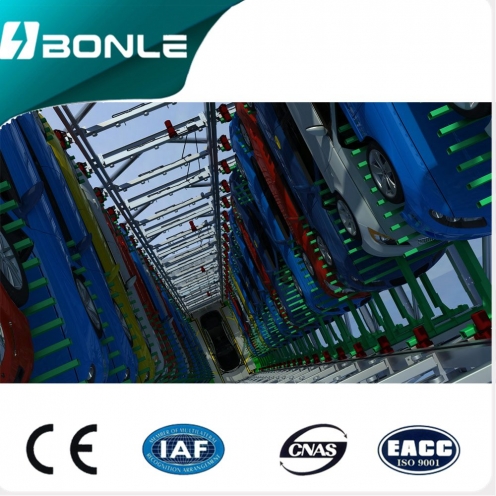

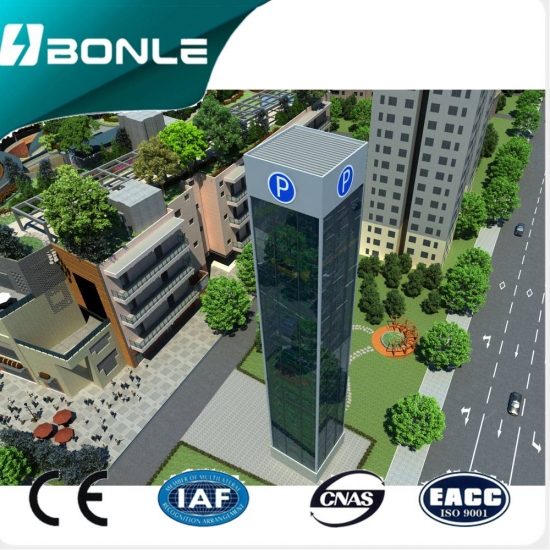

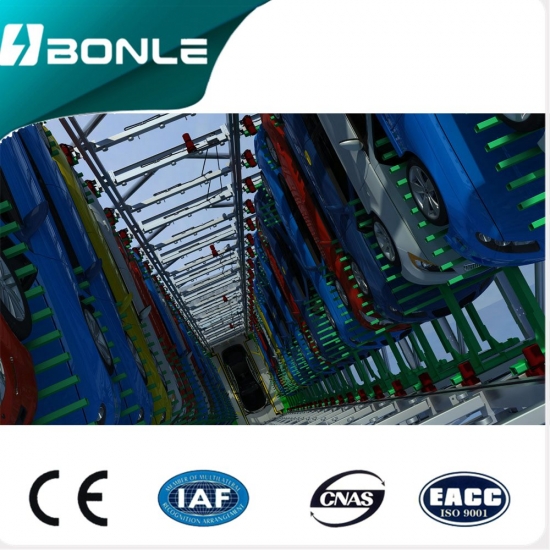

Comb Finger Vertical Lifting Mechanical Parking System
Equipment Size
L (MM)
≤5000
W (MM)
≤1850
H (MM)
≤1550/2050
Weight(KG)
≤2000
Parking Capacity
50Cars
Drive
Lifting Speed (m/min)
60~110m/min
Sliding Speed (m/min)
20m/min
Lift Motor Power
18.5~30KW
Sliding Motor Power
0.2KW
Features
Show
Advantage

Advantage


1.Steel Selection: Large-scale steel ,solid steel design


2.Installarion Technology: High strengh bolt , long-lasting life


3.Restrictor:Resonable design with external contracting holding for tires,


preventing slidding


4.Motor Position: Hiding motor , convenient usage

Contact Us

Inquire
