1,one head for crimping,cutting and punching
2,universal head rotates 350°，flip top style
3,two stage hydraulics
4,Automatic pressure release when crimp is complete
5,Manual retract after working
Product Origin:
ChinaBrand:
BONLEItem No.:
EZ,HZShipping Port:
FUZHOULead Time:
15DAYSPayment:

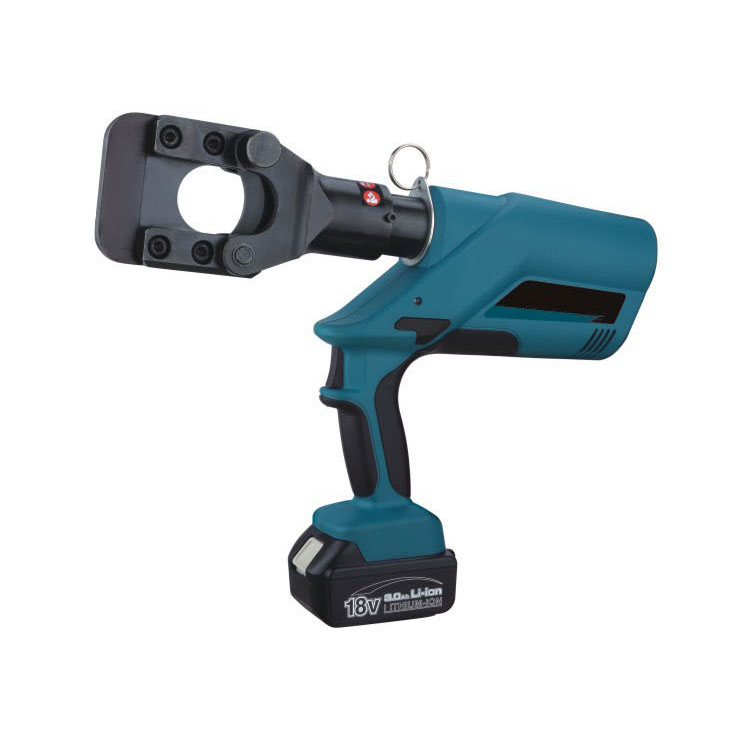

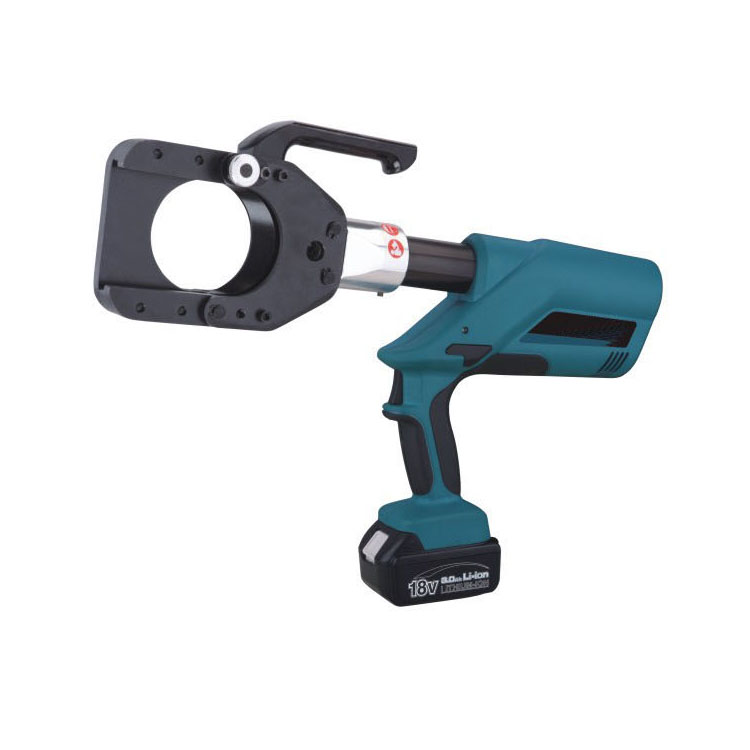

fob or cnfBattery cable cutter for Φ45mm Cu/Al cable and armoured cable
TECHNICAL DATA:
| Type | EZ-45 | EZ-85 |
| Cutting rang | Φ45MM | Φ85MM |
| Cutting cycle | 130times | 70times |
| Stroke | 50MM | 86MM |
| Voltage/Capacity | 18v/3.0Ah | 18v/3.0Ah |
| Weight | 6.0kgs | 7.35kgs |
| Charging time | 1.5hours | 1.5hours |
| Package | plastic box | plastic box |
ACCESSORIES:
| Blade | 1pc |
| Battery | 2pcs |
| Charger | 1pc |
| Sealiing ring of cylinder | 1 set |
| Sealing ring of safety valve | 1 set |
FEATURES:
1.Micro computer control system-automatically detect the pressure when it is crimping,with double safety protect.
2.The tool equipped with a double piston pump which characterized by a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping.
3.If a deviation from the set operation pressure or low battery charges is identified,an acoustic signal sounds and a red display flashes.
4.One key control-press the trigger to start working,half loosing the trigger means stop forcing pressure,loosing fully means pison return to the original position.
5.A Temperature sensor makes the tool stop working automatically when the temperature over 60°cunder long time working,the fault signal sounds, it means the tool can't continue work until the temperature reduced to the normal.
| Product Advantages |
| Production Process |
| QC Flow |
| Company Information |
|
About Us
BONLE Group professionally in power electronics manufacturing and export for many years. Till now sized with 7 factories for different product series. And build a long-term and close collaborative relationship with more than 30 Chinese domestic suppliers, which assures supplying completely for the substation and transmission lines project. Below we have 3 main business channels for different cooperations 1. General order business. 2. International tenders. 3. Substation &Transmission line construction projects. |
|
|
| Qualification Certificate |
| Exhibition |
| BONLE has attend many professional electrical and power exhibitions at different countries for business development, especially our products and services have received lot of good feedbacks from customers. |
| FAQ |
1.Are you factory? Where is the location?
Yes: Office and Factory Address is like below:
91#Taiyu Rd, Fuwan Pian, Jinshan Industrial zone, Fuzhou, PRC 350008
2.What is your main product?
We are advantage in power electrical product manufacturing and exporting,have different product series in high voltage series like insulator, cutout fuse, lightning arrester etc, and some series in low voltage series like switch and socket. dpn defond push button switch. We can accept OEM.
3.When was your company established? How many production lines do you have at present? How many employees?
Our first plant founded in 1991, till now have sized with 7 factories for different product series. And we have 1500 employees (totally in all factories).
4.Where is your major customer?
Our major customers are from Mid-east, South-east Asia and South America, Africa. 5.Does the product you supply have quality guarantee and certificate? Yes,the product pass standard and required testing,
