1,one head for crimping,cutting and punching
2,universal head rotates 350°，flip top style
3,two stage hydraulics
4,Automatic pressure release when crimp is complete
5,Manual retract after working
Product Origin:
ChinaBrand:
BONLEItem No.:
CPC,FHCShipping Port:
FUZHOULead Time:
15DAYSPayment:
fob or cnfCable Cutter Wire Cutter cut armoured Cu/Alu cable Hydraulic Cable Cutting Head

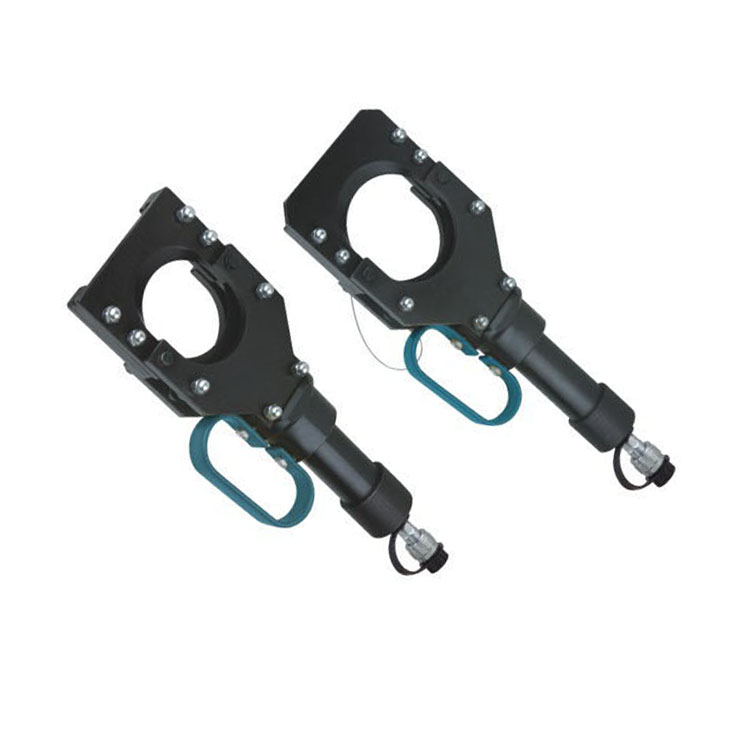

TECHNICAL DATA(CPC-85B/CPC-100B):
| Type | CPC-85B | CPC-100B |
| Cutting force | 60KN | 60KN |
| Cutting rang | Φ85MM,Φ50MM | Φ100MM,Φ75MM |
| Stroke | 92mm | 115mm |
| Length | 465mm | 505mm |
| Weight | approx.7.9kg | approx.8.4kg |
| Oil capacity | 92ml | 115ml |
| Package | steel case | steel case |
FEATURES:
Split hydraulic cable cutter can work with hydraulic hand pump or electric hydraulic pump,it is suit for big size of telephone cable or armoured Cu/Alu cables.

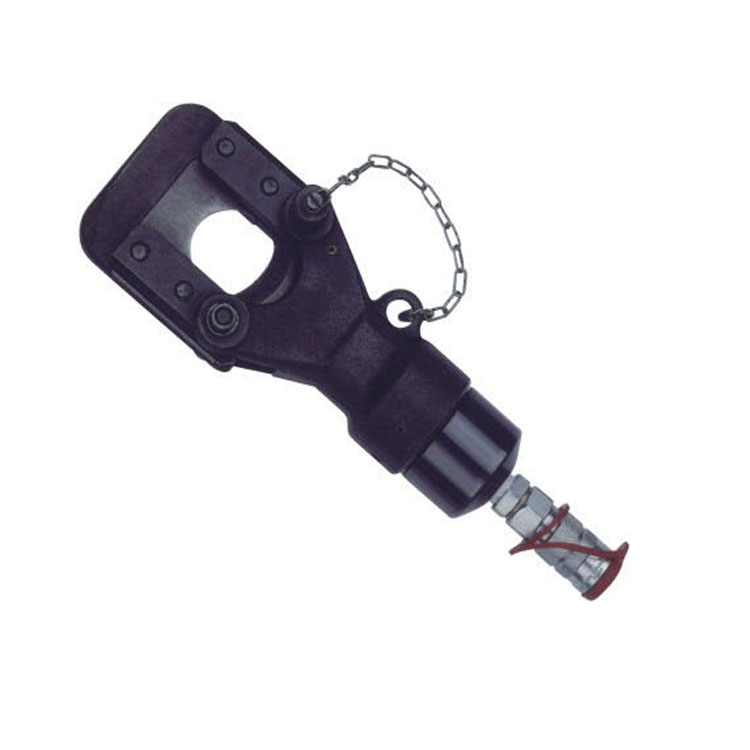

TECHNICAL DATA(FHC-42):
| Type | FHC-42 |
| Cutting force | 60KN |
| Cutting rang | Φ45MM |
| Stroke | 50mm |
| Length | 355mm |
| Weight | approx.4.2kg |
| Oil capacity | 50ml |
| Package | steel case |
FEATURES:
Flip top cutting head rotates 360°.
New two stage hydraulic to reduce cutting cycle,automatic release pressure when cut is complete.
Manual release in case of need.

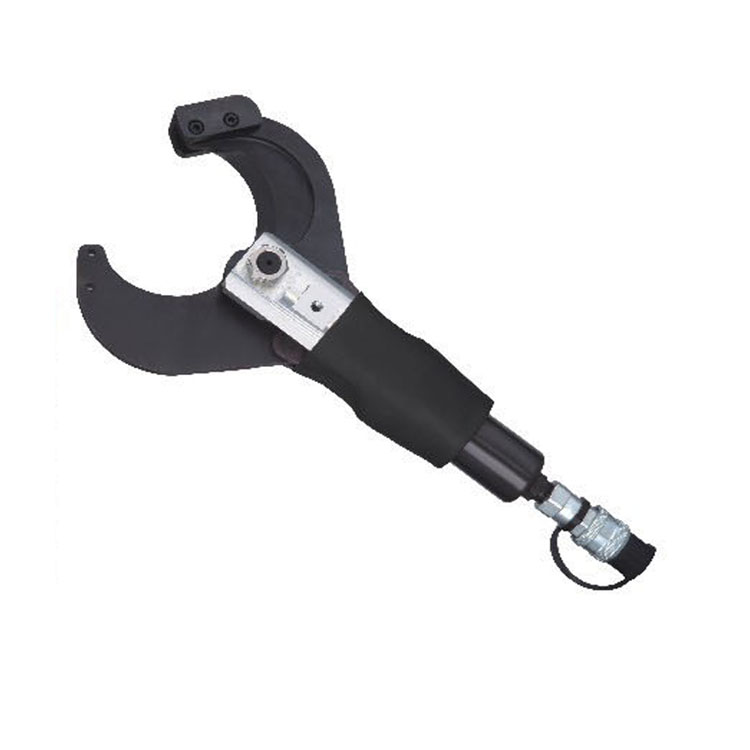

TECHNICAL DATA(CPC-65C/85C/105C/120C):
| Type | CPC-65C | CPC-85C | CPC-105C | CPC-120C |
| Rated output | 60KN | 60KN | 60KN | 60KN |
| Armoured Cu/Al | Φ45MM | Φ65MM | Φ85MM | Φ100MM |
| Cu/Al cable | Φ65MM | Φ85MM | Φ105MM | Φ120MM |
| Rated pressure | 63Mpa | 63Mpa | 66Mpa | 66Mpa |
| Max pressure | 70Mpa | 70Mpa | 70Mpa | 70Mpa |
| Oil capacity | 46ml | 52ml | 95ml | 95ml |
| Retraction mode | Piston retraction | Piston retraction | Piston retraction | Piston retraction |
| Hydraulic oil | Shell tellus T15 | Shell tellus T15 | Shell tellus T15 | Shell tellus T15 |
| Working temperature | -20~50℃ | -20~50℃ | -20~50℃ | -20~50℃ |
FEATURES:
Opening C type cutting head.
Hydraulic quick coupler connect with the pump for working.
Guide pad design avoid the blade dislocation during cutting procession.
