Transmission line and substation pin post composite insulator FZSW

1).Silicon Rubber for sheds/housing

2).Glass-fiber reinforced epoxy resin rod(ECR type)for core

3).Hop dip galvanized cast steel for metal fittings

4).IEC standard.

5).ISO9001 and ISO14001 manufacturer.

  • Product Origin:

    china
  • Brand:

    BONLE
  • Item No.:

    FZSW
  • Shipping Port:

    FUZHOU PORT
  • Color:

    red or grey
  • Lead Time:

    30days
  • Payment:

    FOB OR CNF
Get Free Drawing&Quote Now
  • DESCRIPTION

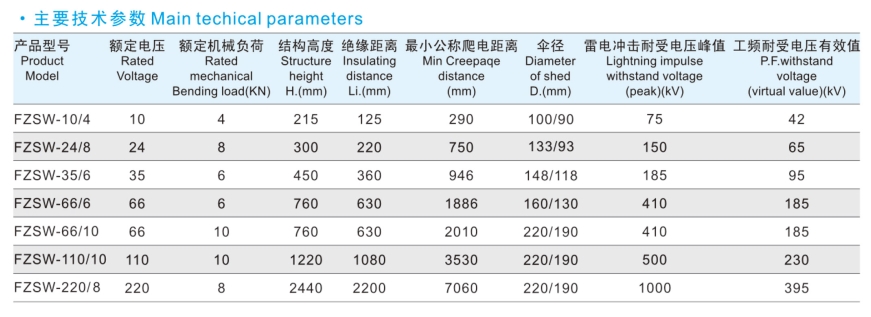

  • PARAMETERS

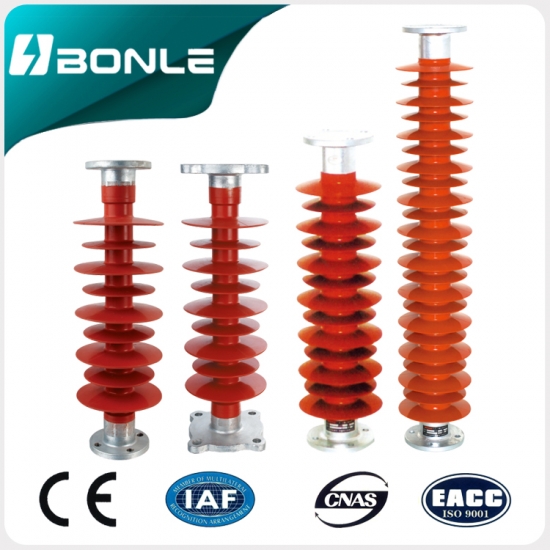

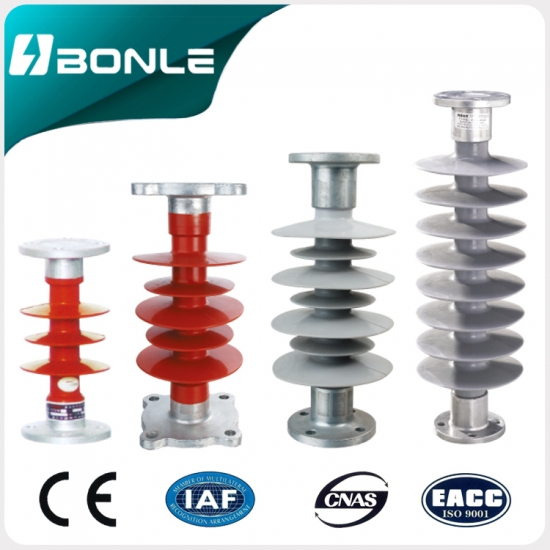

Transmission line and substation pin post composite insulator FZSW

Feature:



1.The Composite insulators are made of glass fiber epoxy core rod,silicone rubber shed and metal fitting.



2.The silicone rubber shed adopt the whole packing pressure technique.



3.Small volume,light weight,corrosion prevention and reliable structure.



4.Sheath thickness is more than 5mm and in accordance with IEC international standard.


post composite insulator
